Tru-Test Control Panel.

Tru-Test Weigh Heads AND FarmIT 3000

FarmIT 3000 provides direct communication with the Tru-test XR500, XR3000, DR3000, JR3000, SR3000 and EZIWeigh 6, 7 and 7i units, thus enabling you to exchange data quickly and easily and directly to and from your FarmIT3000 software without the use of other software or files.



The Control Panel

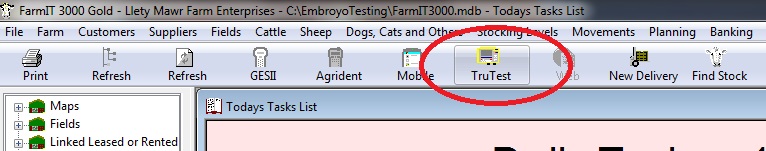

The FarmIT 3000 TRU-Test control panel provides the interface to upload life data (XR3000) and download weight data. The control panel is accessed vai the File menu or via the Toolbar (you need to customise the toolbar to add the icon - See Toolbar Customisation)

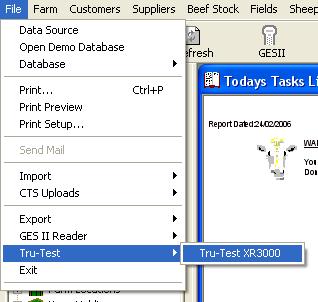

Go to the "File Menu" click on the "Tru-Test" item on the menu, then, on the sub menu, click "Tru-Test XR3000".

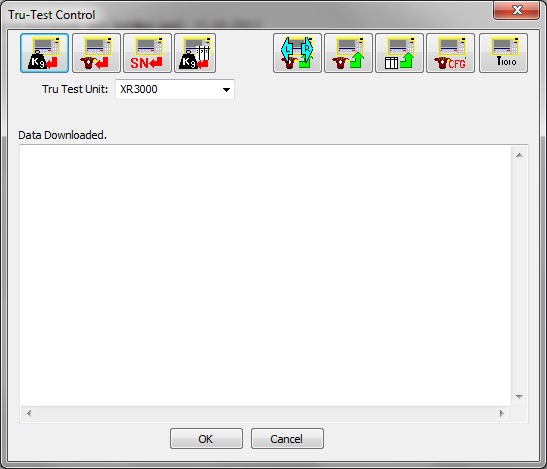

The Tru-Test Control will then start up.



 Get Weight Data :
This gets the weight data and allows you to Import it into FarmIT 3000. This will first list the available sessions on the unit for you to select one to download.

 Get Life Data :
This will download the Life Data. It will add in animals and update animals in FarmIT 3000 where necessary.

 Get Serial Number :
This gets the serial number and version of the the TRU-Test Unit. It will initiate a search for the unit on all available com ports if not initially found.



Tru-Test Put Drafting Data Put Drafting Data:
This allows you to select animals and specify a drafting code to enable drafting with the Tru-test unit for example for selection of cull ewes etc.

 Put Life Data :
This downloads all the animals of a selected type from FarmIT 3000.

 Set Up Weighing File :
This will set up the Weighing file for you.



 COM settings:
This is for setting up your COM settings.
